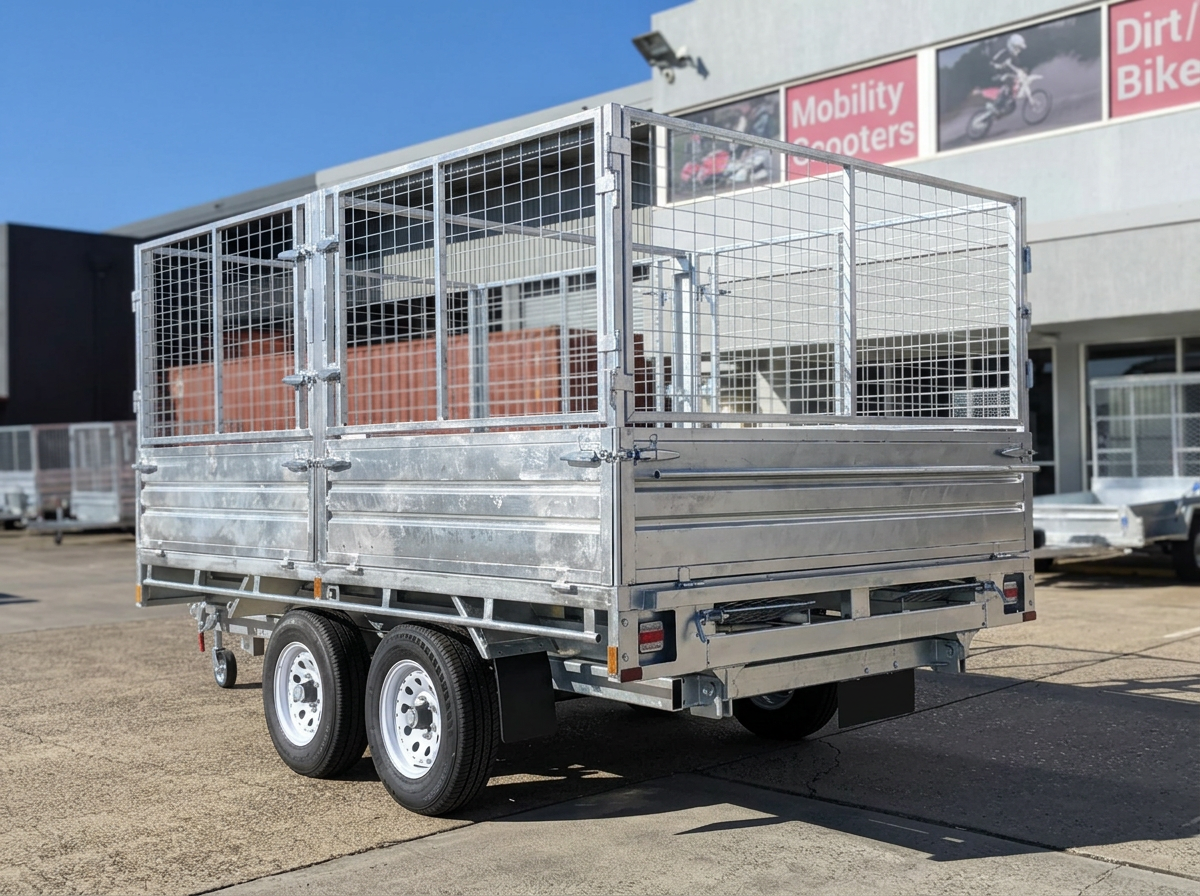

The 10x6 Hydraulic Flat Top Tipper Trailer 3500kg ATM is a heavy-duty tandem axle trailer built for customers who need the versatility of a flat deck with the added convenience of hydraulic tipping.
With 3500kg ATM, removable 450mm sides, a 900mm cage and heavy-duty slide-out loading ramps, this trailer is ideal for tradies, farmers, landscapers, contractors and property owners who need a practical trailer for machinery, equipment, materials and everyday heavy-duty work.
Built For Heavy-Duty Work
The 10x6 flat top design gives you a practical open deck with removable sides, while the hydraulic tipping system makes unloading faster and easier.
The 4-stage hydraulic ram, heavy-duty galvanised chassis and electric braking system make this trailer suitable for demanding trade, rural and commercial applications.
Key Features
10x6 flat top / flat deck design
3500kg ATM
Tandem axle configuration
Hot-dipped galvanised construction
450mm removable sides

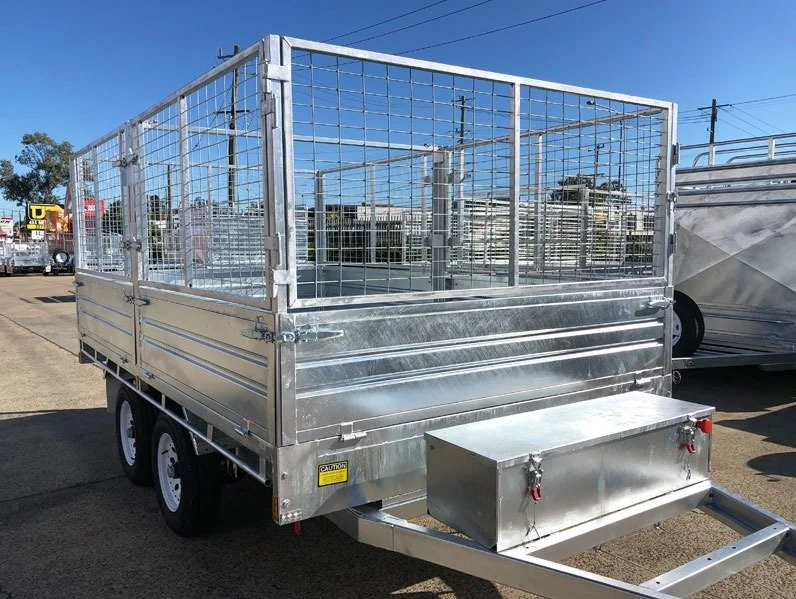

900mm high cage
Total side and cage height: 1350mm

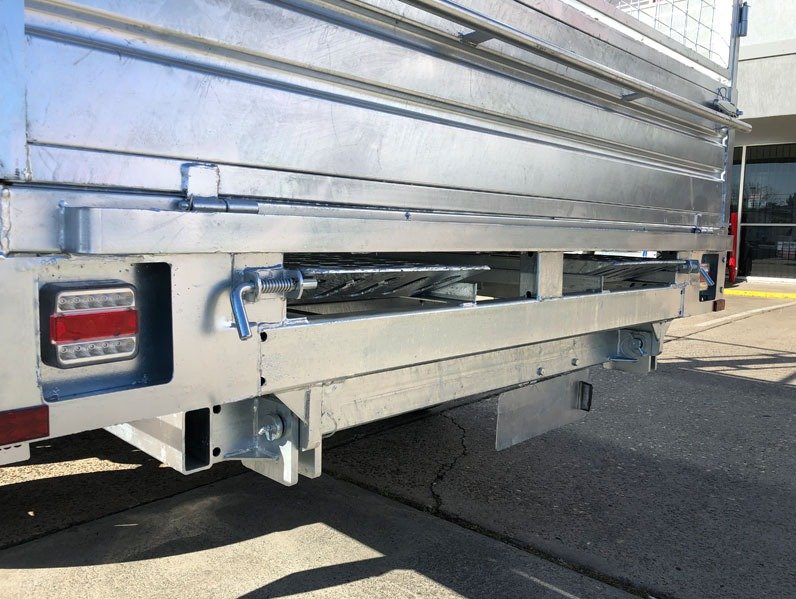

2 heavy-duty slide-out loading ramps

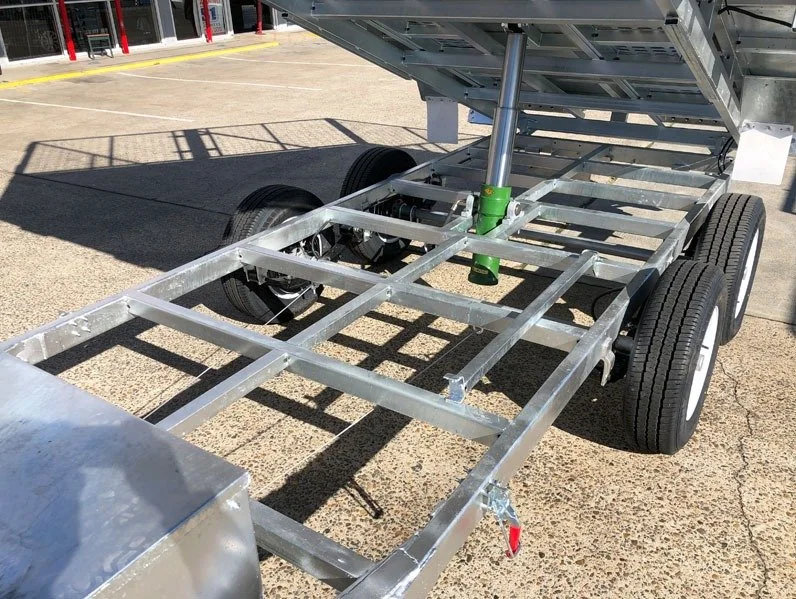

4-stage hydraulic tipping ram
3500kg hydraulic loading capacity
15-inch Sunraysia rims
Light truck tyres
1900mm ultra-long drawbar
12-inch electric brakes on all four wheels
Drop-down removable side and rear panels
Fully welded 100mm x 50mm x 5mm RHS chassis
9-leaf heavy-duty springs
Rocker roller suspension
4mm galvanised checker plate floor, gates and sides
Lockable hydraulic system toolbox
12V automotive battery
Anderson plug fitted
Tie-down rails around trailer
LED tail lights
Heavy-duty ADR safety chain
Load-rated shackle
Separate battery-powered breakaway system
Flat 7-pin plug
Swing-up jockey wheel included
24-month warranty
Ideal For
Builders and tradies
Landscapers
Farm and rural use
Machinery transport
Equipment transport
Building materials
Property maintenance
Commercial transport
Bulk material transport
Why Choose This Trailer
The 10x6 Hydraulic Flat Top Tipper gives customers the flexibility of a flat deck trailer with the added convenience of hydraulic tipping.
With 3500kg ATM, removable sides, a 900mm cage, ramps and a heavy-duty hydraulic system, it is designed for customers who need one practical trailer for loading, transport and unloading.
Available Across Smart Trailers Locations
This trailer may be available through Smart Trailers locations including Tamworth, Glen Innes and Narrabri.
Availability, pricing and pickup options may vary by location. Please contact Smart Trailers to confirm current stock and specifications.
